Oil-Immersed Power Transformers
Turkish Transformer designs and manufactures high-reliability power transformers for global utilities, IPPs and industrial plants. We build per IEC 60076 (ANSI on request), with OLTC/OCTC, cooling from ONAN to ODAF, factory routine tests, and full documentation & traceability. Export-grade packing and regular shipments worldwide.
Quick navigation: Features · Applications · Specs · Options · Datasheet & Quote · FAQs
Key Features
- Ratings: 5–35 MVA (higher on request); HV up to 245 kV
- Tap-changer: OLTC (drive & cubicle), or OCTC ±2×2.5% / custom ranges

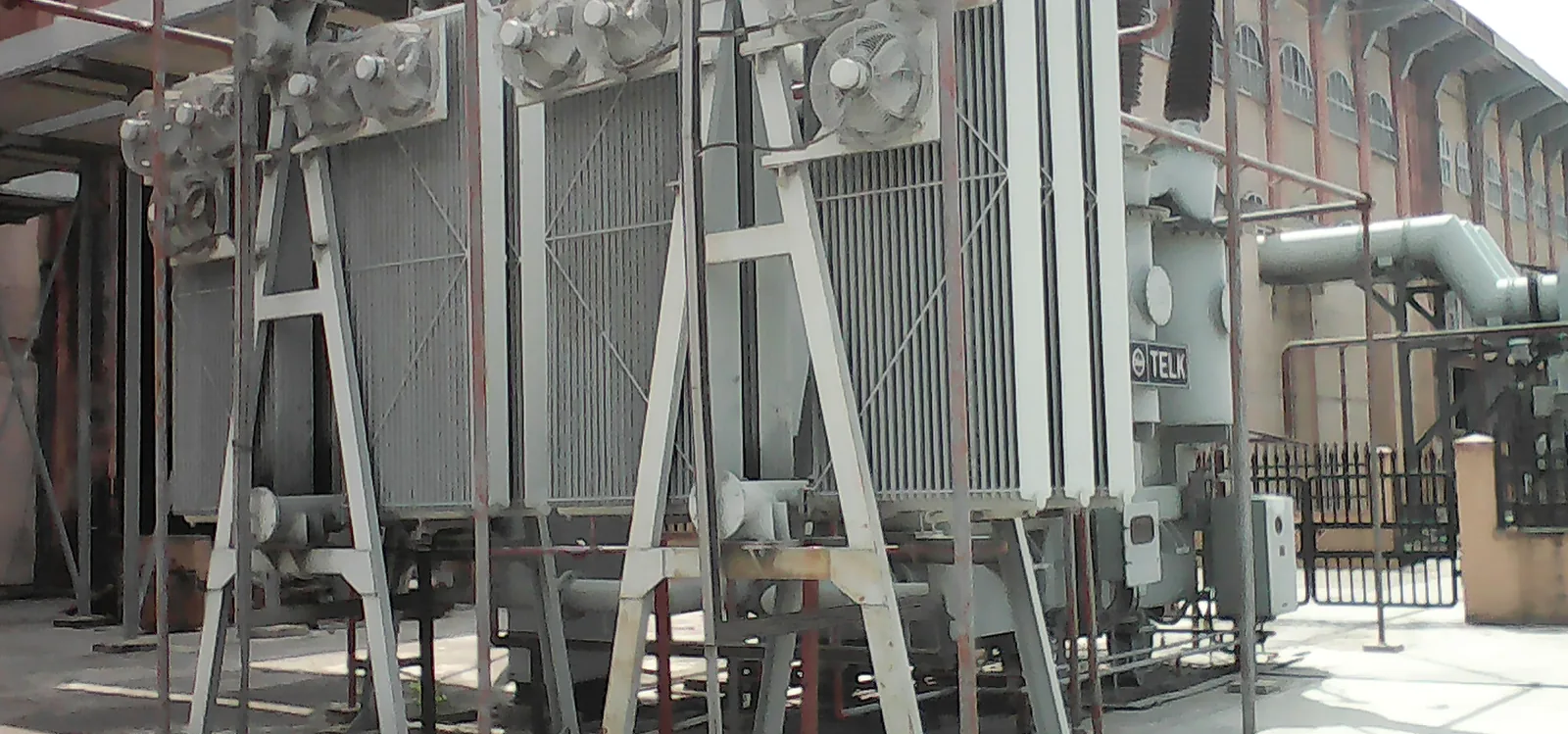

- Cooling: ONAN / ONAF / ODAF; low noise designs on demand
- Windings: Copper or Aluminium; mineral oil or natural ester
- Testing: routine tests per IEC 60076; FAT/SAT support
- Documents: nameplate drawings, test reports, CoC/DoC
Applications

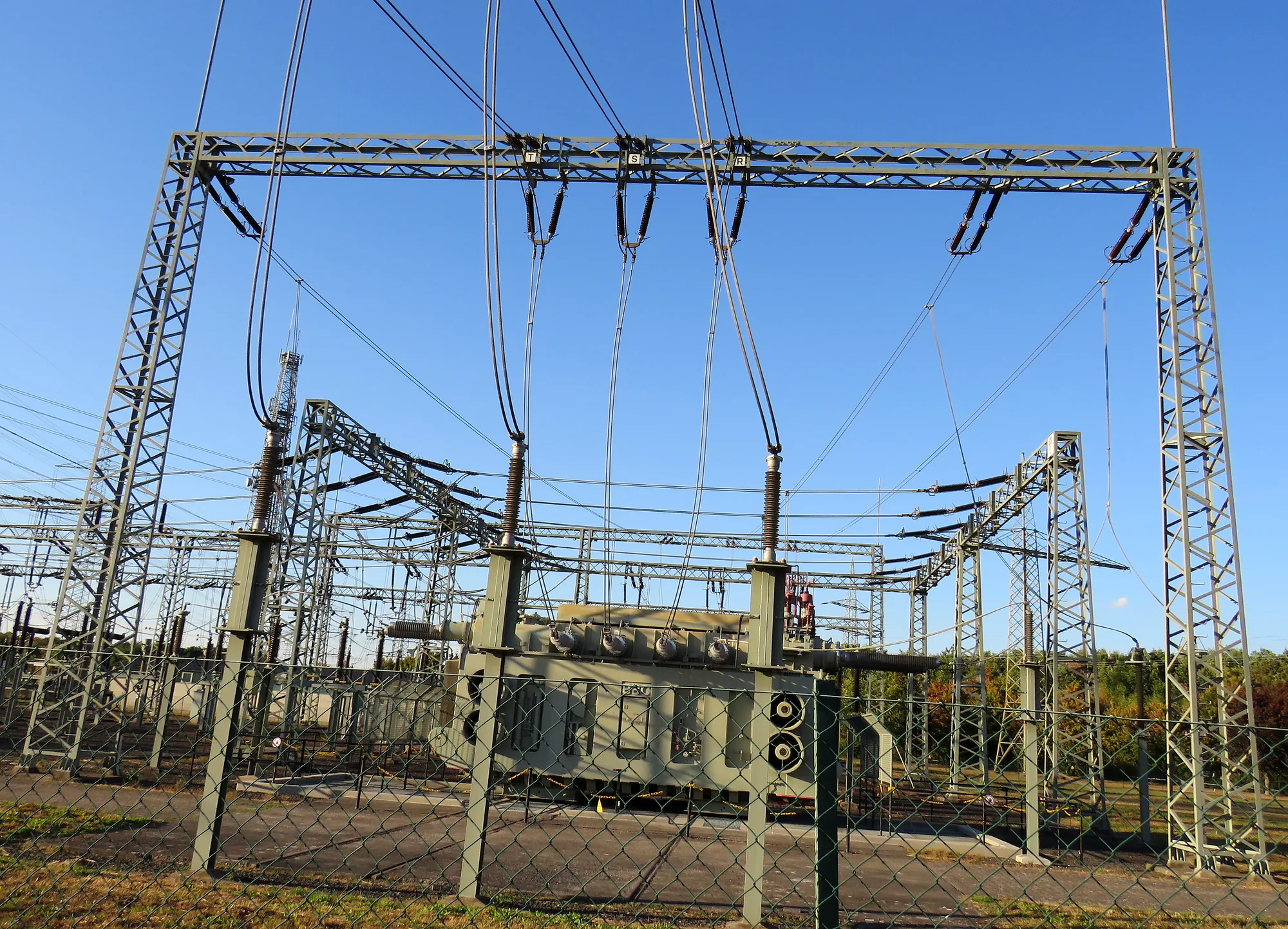

- Utility transmission & sub-transmission substations
- Large industrial plants, refineries, steel & mining
- IPP / EPC projects, interconnection transformers
- Renewable hubs & hybrid plants (wind/PV/BESS)
Specification Snapshot
| Rating (MVA) | 5 – 35 (higher on request) |
|---|---|
| HV (kV) | 66 / 110 / (project-specific) |
| LV / MV (kV) | 3.15 – 36 (e.g., 6.6 / 10 / 11 / 20 / 33) |
| Frequency | 50 Hz (60 Hz on request) |
| Cooling | ONAN, ONAF, ODAF |
| Tap-changer | OLTC (MR etc.) or OCTC; customer ranges |
| Vector group | YNd1 / YNd11 / Dyn11 or as required |
| Insulation / Oil | Mineral oil or natural ester; bushings porcelain/resin |
| Standards | IEC 60076 (ANSI/IEEE on request) |
Options & Accessories
- OLTC drive & control cubicle, tap position indicator
- Buchholz & PRD, OTI/WTI with contacts, Pt100 sensors
- Online monitors (gas/moisture), bushing CTs
- Neutral earthing reactors/resistors, LV cable boxes
- Anti-vibration pads, C4/C5 paint systems, IP-rated kiosks
Datasheet & Quote
Request a Quote · Download 1-page Datasheet (PDF)
Related
- Distribution Transformers
- Dry-Type Transformer
- Special / Customized Transformers
- Service & Maintenance
FAQs
What is the difference vs distribution transformers?
Power transformers cover higher MVA and higher HV levels (e.g., 66–245 kV) and typically use OLTC/ONAF/ODAF.
50 Hz or 60 Hz?
Both are available; confirm grid frequency early in the RFQ.
Do you supply ANSI/IEEE designs?
Yes—IEC 60076 as standard; ANSI/IEEE C57 on request.
Which tests are performed?
Routine tests per IEC 60076; type/special tests on request. FAT/SAT support included.
